Product Details:
|
| Product Name: | Stainless Steel Pipes | Standard: | JIS, AiSi, ASTM, GB, DIN, EN |
|---|---|---|---|
| Type: | Welded | Grade: | 304/304L/316/316L |
| Welding Line Type: | ERW | Outer Diameter: | 20mm |
| Tolerance: | ±1% | Section Shape: | Round |
| Invoicing: | By Actual Weight | Delivery Time: | 15-21 Days |
| Payment Term: | 30%T/T Advance + 70% Balance | Technique: | Cold Rolled Hot Rolled |
| Business Type: | Manufaturer |

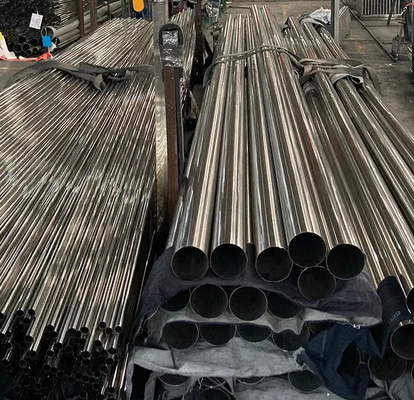

SUS 304 304L ISO9001 Stainless Steel Pipe 0.5-2mm Thickness Welded for Decoration
Product Details
Stainless steel pipe is a hollow strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used as furniture and kitchenware.
|
Product Name
|
Rectangular Stainless Steel Tube
|
|
Standard
|
ASTM, JIS, DIN EN,GB
|
|
type
|
Seamless pipe/tube, welded pipe/tube
|
|
Outer Diameter
|
Outer Diameter
1) Round pipe: 8mm to 680 mm 2) Square pipe: 10x10mm to 300x300mm 3) Rectangular pipe: 10x20mm to 120x180mm |
|
Certificate
|
CO ,FTA,MTC ,ISO, SGS ,CE or other third party inspection acceptable.
|
|
Shape
|
Round, Square, Rectangular, Slot, Oval, etc
|
|
Application
|
Decoration,construction,upholstery,industry instrument,medical equipment,ect
|
|
Material Grade
|
201 ( Ni 1.2%), 202 (Ni 3.5%~4.5%) 301(Ni 5%), 304 (Ni 8%, Cr 18%) 316 (Ni 10%, Cr 18%), 316L (Ni10%~14%) 430(Cr16%~18%) |
|
Length
|
6m or as customer's request
|
|
Thickness
|
0.5mm-100mm
|
|
Surface
|
180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish,HL,8K,etc |
|
Standard
|
JIS, AISI, ASTM, GB, DIN, EN
|
|
Advantage
|
Small MOQ + Superior quality + Competitive price + Fast delivery
|
|
Package
|
Water proof film coated, standard export package or as required.
|
|
Delivery Time
|
15-20 days after receive the deposit
|
|
Payment terms
|
T/T, L/C at sight, Western Union,etc.
|
Chemical composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0- |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 - |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Photo Details
Package&Delivery
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
